Brief introduction

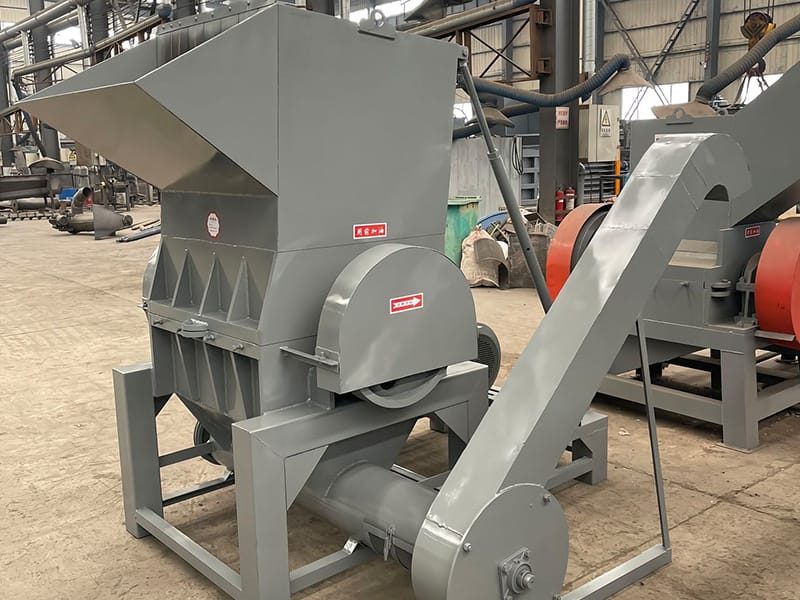

Plastic shredders (plastic crushers/granulators) are the fundamental main equipment in recycled plastic production lines. They primarily cut and crush various types of waste plastics into uniform granules/fragments, facilitating subsequent cleaning, granulation, and transportation, significantly increasing the recycling value of waste materials. They are widely used in plastic processing plants and recycling plants.

I. Range of Processable Materials: Suitable for various soft and hard plastic wastes: PET mineral water bottles, oil cans, plastic buckets, PVC pipes, PP/PE woven bags, plastic films, injection molding machine heads, scraps, plastic baskets, plastic pallets, and other industrial and domestic waste plastics. Blades and machine models can be selected according to the hardness of the material, accommodating both hard and thin plastics.

II. Working Principle: The motor drives the rotor cutter head to rotate at high speed. The moving blades follow the rotor’s rotation, creating a continuous shearing action with the fixed blades on the cavity, similar to heavy-duty scissors repeatedly cutting the material. Waste material enters the crushing chamber through the feed inlet and is continuously sheared and crushed. A replaceable screen is installed at the bottom of the chamber; only particles smaller than the screen aperture can pass through and be discharged. Material that does not meet the size requirements continues to be cut within the chamber, ensuring uniform particle size. Finished material is discharged via a screw conveyor or blower from below.

III. Product Advantages

1. Controllable Discharge: The screen can be quickly replaced, allowing for free adjustment of the finished particle size to match downstream washing and granulation process requirements.
2. Durable Blades: Wear-resistant alloy blades are used, offering strong impact resistance and wear resistance, stable cutting, and minimal breakage, resulting in a long maintenance cycle.
3. Stable and Jam-Free: Optimized cutter shaft and chamber structure, coupled with overload protection, automatically cuts off power and reverses upon encountering hard objects, reducing machine blockage and making it suitable for long-term continuous industrial production.
4. Production Line Compatibility: Can be integrated with belt conveyors, screw conveyors, and washing tanks to form an automated plastic crushing and washing line, reducing manual feeding and increasing production capacity. 5. Simple Operation and Maintenance: The chamber is easy to open, and cleaning and blade replacement are simple; the overall structure is robust, with low vibration and reasonable energy consumption, making it suitable for long-term use in recycling plants.

IV. Selection Tips We offer various models with different hourly outputs. You can provide the type of material, target hourly output, and desired output size, and we will match you with a suitable model and provide a complete solution and quotation.
